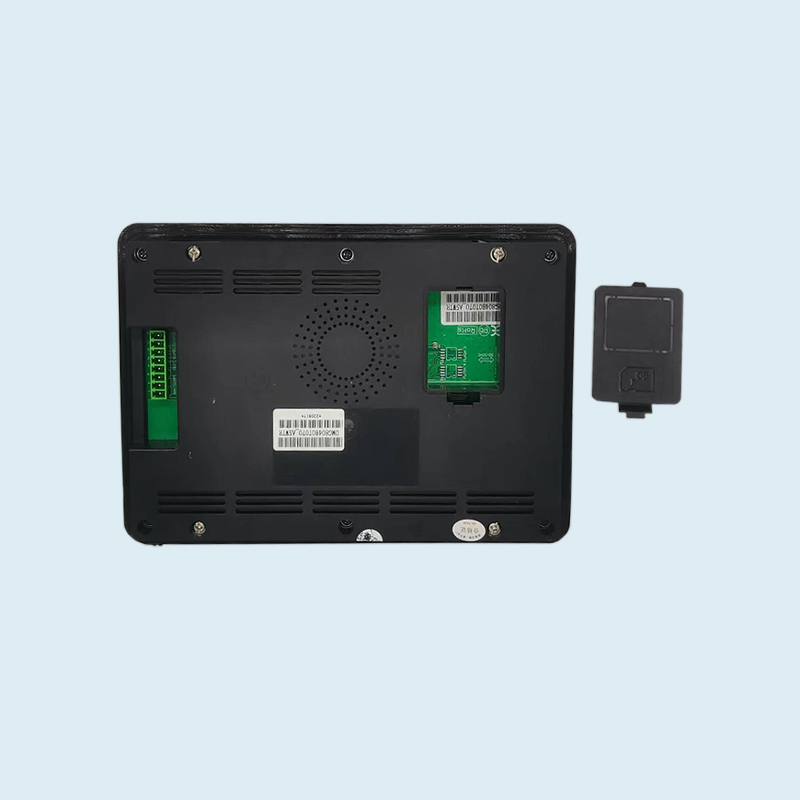

7-inch LCD line controller
01
Space Vector SVPWM
Precise estimation of position
Weak magnetic control
Adaptive high-efficiency startup
Torque compensation
02
Fast matching of different compressors
Interleaved Active PFC
Maximum torque to current ratio control
Deadband compensation
03
Compressor preheating technology
Two Phase PWM Modulation
Harmonic injection
1HZ inverter control
04
High efficiency APFC
Comprehensive exception protection
Compatible with DC fans
Ultra-low standby power consumption
Wide input voltage range
-
Single-phase 1-2P drive module_Mitsubishi 20A IPM
Single-phase 1-2P drive module_Mitsubishi 20A IPM
Rated power supply: single-phase AC220V/50Hz
Operating voltage range :165V-255V
Maximum input current:13.5Arms@220V(2P)
Maximum output phase current :9.5A MAX (2P) -
Filter Board
Filter Board
-
Single system masterboard
Single system masterboard
-
Single-phase 3-5P drive module_Mitsubishi 35A IPM
Single-phase 3-5P drive module_Mitsubishi 35A IPM
Rated power supply: single-phase AC220V/50Hz
Operating voltage range: 165V~255V
Maximum input current: 18Arms@220V(3P)
Maximum output phase current: 14AMAX (3P)
