Single-phase 1-2P drive module_Mitsubishi 20A IPM

Rated power supply: single-phase AC220V/50Hz
Operating voltage range :165V-255V
Maximum input current:13.5Arms@220V(2P)
Maximum output phase current :9.5A MAX (2P)

Single-phase 3-5P drive module_Mitsubishi 35A IPM

Rated power supply: single-phase AC220V/50Hz
Operating voltage range: 165V~255V
Maximum input current: 18Arms@220V(3P)
Maximum output phase current: 14AMAX (3P)

Single-phase 5-8P drive module_Mitsubishi 50A IPM

Rated power supply: single-phase AC220V/50Hz
Operating voltage range: 165V-264V
Maximum input current: 33Arms@220V(8P)
Maximum output phase current: 22AMAX (8P)

Three-phase 5-7P drive module_Infineon 50A

Rated power supply: three-phase AC380V/50Hz
Operating voltage range: 320V~460V
Maximum input current: 25Arms@380V (7P)
Maximum output phase current: 22AMAX (7P)

Single system 10-12P

Rated power supply: three-phase AC 380V/50Hz
Operatingvoltage range: 320V-460V
Maximum input current :30A
Maximum output phase current :26A

Three-phase 12-15P compressor inverter drive module

. All compressors on the market can be matched, by dialing a code to select a station number
. Adopting Germany Infineon module, Italy ST chip and other domestic first-line brands, stable operation, small sound, good heat dissipation, support electrolytic models and thin film models

Filter Board

Three-phase 100A compressor inverter drive

Rated power supply: threephase AC380V/50Hz
Operating voltage range: 320V to 460V
Maximum input current: 55Arms@380V
Maximum output phase current :43A MAX

Single system masterboard

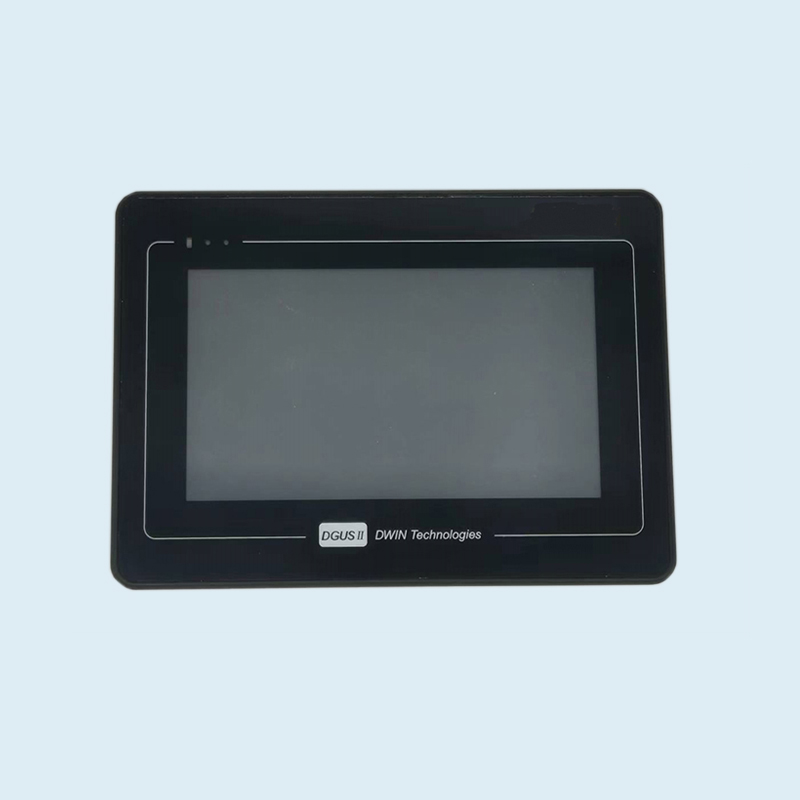

7-inch LCD line controller

. 485 communication, cell phone wife remote operation

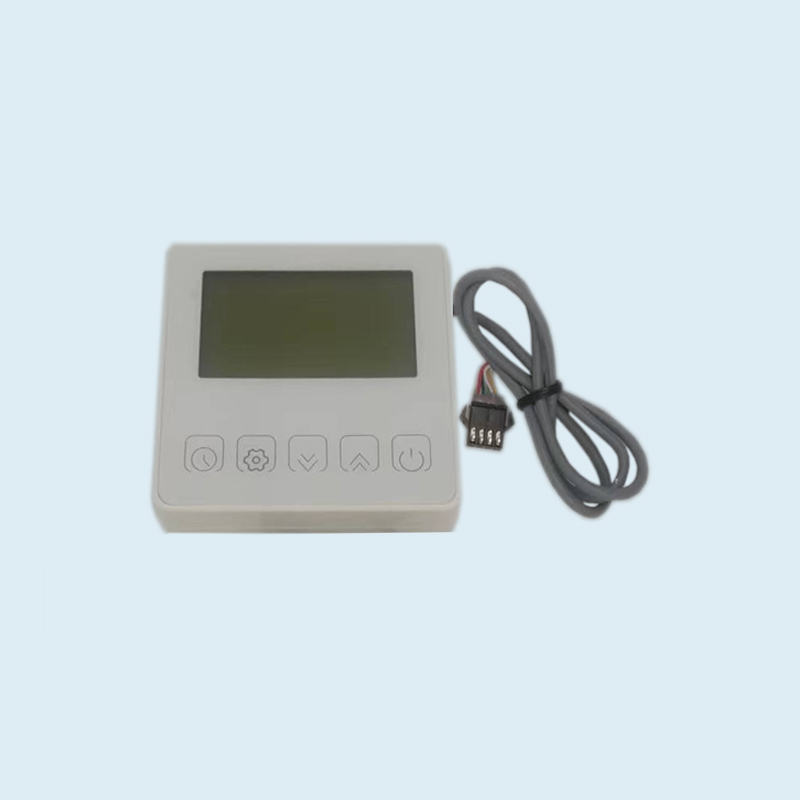

86Wire controller screen_with wifi

15A Reactance
