1000W_Air-cooled_Fixed Power MEP168P
.176V to 264V input voltage output power range continuously adjustable from 250W to 1500W
. Built-in fault self-test, fault upload function
. Support multi-mode control, support for 0-5V analog and 485 communication digital two modes of power regulation
Parameters
INPUT
input voltage 200-240VAC
input current 10A Max
Frequency 47-63HZ
Leakage current ＜ 250uA
OUT PUT
Rated anode high voltage 4200vdc
Rated anode current 0.35A
Filament voltage 3.3V
Filament current 10A
operating temperature -10+40°
Type of cooling Air cooling
storage temperature -40~+85°
Related humidity 5-95%
Altitude 3000m
Weight 700g
Protection
Over current Y
Over voltage Y
Over temperature Y
Arcing protection Y

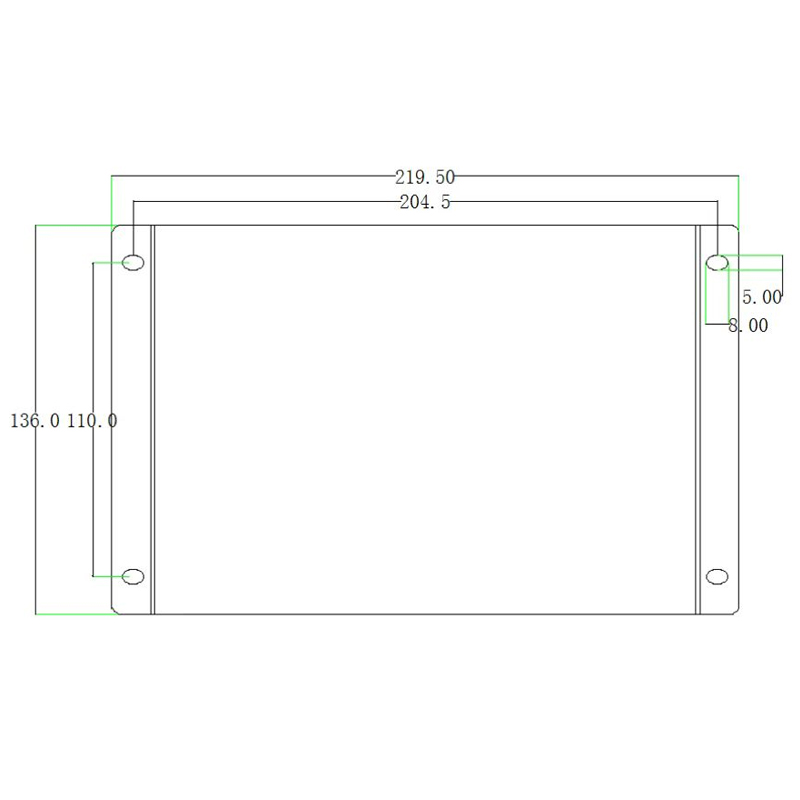

(SIZE)208*110*91mm
Variable frequency energy-saving
Self developed variable frequency power supply; Adjustable power
Strong performance
Wide adaptability to the power grid; Significantly reduce the damage rate of magnetron
Lightweight and fast
Small size, wide space applicability
-
